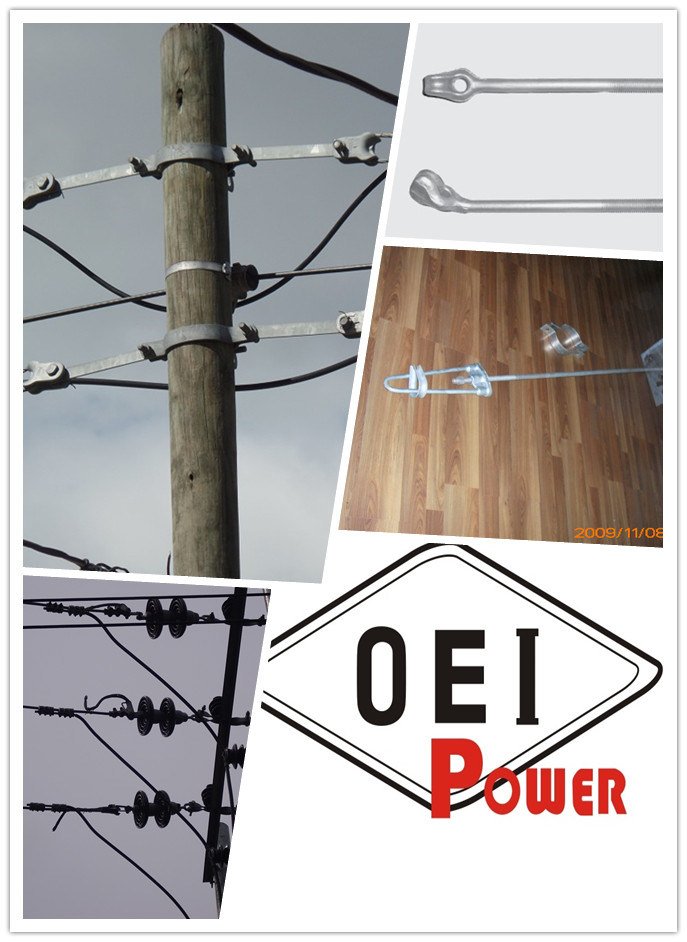

Strain Clamps Transmission, Distribution Line

Quantity:
  • p-9
  • Cartons Pallets Wooden Case
  • China Nanyang
  • OEIpower
  • IEC IEEE
  • 854690000

Product Description

 The Fuse Cutout type OEI was developed to operate in overhead distribution systems rated at 11
kV to 38 kV grounded systems with 100 or 200 A nominal currents.
Especially designed to protect transformers, capacitors, cables or lines.
It is robust construction, made of rigorously tested material, will interrupt all faults under the
most severe conditions, maintaining mechanical and electric characteristics.
The inserts, hardware and structural bolts and nuts are made from heavy galvanized steel.
The Fuse Cutout type OEI can be applied on all three-phase system rated at or below the maximum
operational rating of the cutout.

Product D  Bracket
Test Items Test Content Test Result
Sample
1
Sample
2
Sample
3
Sample
4
Sample
5
Remarks
Visual  Inspection Crack 1)      Passed Mark"√"
2)  Not Passed Mark"×"
Test Conclusion:
Stoma Trachoma
Fins
Burr
Galvanizing thickness μm 1)      Passed Mark"√"
2)      Not Passed Mark"×":
Test Conclusion:
Mechanical Characteristics Mechanical Load 1)Passed Mark"√"
2)Not Passed Mark"×"
Test Conclusion:
Inspector Date:  02. March,2011                        Approved:

S/N TECHNICAL DETAILS UNITS DATA
1. Description   70kN Adaptor Clevis Tongue complete
with pin, split pin and washer
2. Minimum failing load kN 70
3. Material   Malleable Cast Iron
4. Applicable standard   BS 3288
5. Accessories   Pin, split pin and washer
6. Dimensions: As per Fig 1 below A mm 17.5
B mm 22.5
C mm 8
D mm 18.5
E mm 16
7. Tolerances   As per BS 3288
8. Altitude m 1400
9. Operating ambient temperature oC -1 to 40
10. Minimum relative Humidity % 85
11. q     Previous type test
certificate/results to be provided with bid
Yes/No Yes
12. q     Drawings showing the
dimensions of the adaptor to be provided with bid
Yes/No Yes
13. q     Routine test certificate to
be provided on delivery of adaptors
Yes/No Yes
14. q     Quality Assurance
Certificate to be provided with bid
Yes/No Yes
Adaptor clevis tongue 70kN
Strain Clamps
S/N DETAILS UNITS DATA
1. Conductor Size mm2 50
2. Overall Dimensions. mm As per attached drawing
ZAM-GEN-DM-08-E-12093
3. Material Clamp:   Cast steel hot dip galvanised
Bolts:   Galvanised Steel
4. Corrosion specification   Hot dip galvanised as per SABS 763
5. Minimum failing load kN 70
6. Operating ambient
temperature
°C -1 to 40
7. Relative Humidity % 85
PG Clamps
S/N TYPE CONDU
CTOR CROSS SECTIO N AREAS (mm2)
NUMBER
AND MATERIA LOF BOLT
CLAMP
BODY MATERIA L
DIMENSIONS
1. Aluminium/Aluminiu
m conductor connection
50/50 2 X
Galvanised mild steel bolts
Aluminium As per Drawing
No.E11389 shown below
  Other dimensions
2. Drawings showing
dimensions to be provided with bid
Yes/No Yes
3. Previous type tests
results/certificate to be provided with bid
Yes/No Yes
4. Quality assurance
certificate to be provided with bid
Yes/No Yes

 LINE HARDWARE

Adaptors-

1. Adaptor socket clevis 70 kN,



S/N TECHNICAL DETAILS UNITS DATA
1. Description   70kN Adaptor socket and clevis complete
with security clip, pin, split pin and washer
2. Minimum failing load kN 70
3. Material   Malleable Cast Iron
4. Accessories   Security clip, pin, split pin and washer
5. Dimensions:
As per drawing No. E8456/29
A mm 45
B mm 59
C mm 18.5
D mm 38
E mm 22.5
ØF mm 17.5
G mm 8
'X' mm 16
'Y' mm 16 dia x 50
6. Tolerances   As per BS 3288
7. Altitude m 1400
8. Operating ambient
temperature
oC -1 to 40
9. Relative Humidity % 85
10. q     Previous type test
certificate/results to be provided with bid
Yes/No Yes
11. q     Drawings showing
the dimensions of the adaptor to be provided with bid
Yes/No Yes



220



12. q     Routine test
certificate to be provided on delivery of adaptors
Yes/No Yes
13. q     Quality Assurance
Certificate to be provided with bid
Yes/No Yes
14. Applicable standard   BS 3288




























































221



2. Adaptor socket tongue 70kN





S/N DETAIL UNITS DATA
1. Minimum failing load kN 70
2. Material   Malleable Cast Iron
3. Accessories   Security clip
4. Tolerances   As per BS 3288
5. Altitude m 1400
6. Operating    ambient
temperature
oC -1 to 40
7. Relative Humidity % 85
8. Previous        type        test
certificate/results    to    be provided with the bid
Yes/No Yes
9. Drawings               showing
dimensions  of  the  adaptor to be provided with the bid
Yes/No Yes
10. Quality                Assurance
Certification to be provided with the bid
Yes/No Yes
11. Routine  test  results  to  be
provided   on   delivery   of adaptors
Yes/No Yes
12. Applicable standard   BS 3288
`


224











3. Adaptor clevis tongue 70kN


S/N TECHNICAL DETAILS UNITS DATA
1. Description   70kN Adaptor Clevis Tongue complete
with pin, split pin and washer
2. Minimum failing load kN 70
3. Material   Malleable Cast Iron
4. Applicable standard   BS 3288
5. Accessories   Pin, split pin and washer
6. Dimensions: As per Fig 1 below A mm 17.5
B mm 22.5
C mm 8
D mm 18.5
E mm 16
7. Tolerances   As per BS 3288
8. Altitude m 1400
9. Operating ambient temperature oC -1 to 40
10. Minimum relative Humidity % 85
11. q     Previous type test
certificate/results to be provided with bid
Yes/No Yes
12. q     Drawings showing the
dimensions of the adaptor to be provided with bid
Yes/No Yes
13. q     Routine test certificate to
be provided on delivery of adaptors
Yes/No Yes
14. q     Quality Assurance
Certificate to be provided with bid
Yes/No Yes
`






Strain Clamps-

1. (Gun) ACSR 50 mm2,


S/N DETAILS UNITS DATA
1. Conductor Size mm2 50
2. Overall Dimensions. mm As per attached drawing
ZAM-GEN-DM-08-E-12093
3. Material Clamp:   Cast steel hot dip galvanised
Bolts:   Galvanised Steel
4. Corrosion specification   Hot dip galvanised as per SABS 763
5. Minimum failing load kN 70
6. Operating ambient
temperature
°C -1 to 40
. Relative Humidity % 85
8. Altitude above sea level m 1400
9. Applicable Standard   BS 3288, SABS 763
10. Previous type
test results/certificat e to be provided with bid
Tensile
tests,etc
Yes/No Yes
11. Drawing showing dimensions to be provided with bid
Yes/No

Yes
12. Quality assurance manuals/
certificate to be provided with bid
Yes/No Yes
13. Routine test results to be
provided on delivery.
Yes/No Yes



DIMENSIONS (see drawing no. ZAM-GEN-DM-08-E-12093 below)

Clamp size A (mm) B(mm) C D (mm) E (mm) F (mm)
50mm2 175 110 U-bolt
M10
18 16 50






230




Notes

(i)        The minimum failing load shall be indelibly marked on each Pistol clamp. (ii)       The system of dimensioning shall be as per BS 3288
(iii)       The supplier should  provide a test certificate for compliance to the minimum failing load

2. (Gun) ACSR 100 mm2


S/N DETAILS UNITS DATA
1. Conductor Size mm2 100
2. Overall Dimensions. mm As per attached drawing
ZAM-GEN-DM-08-E-12093
3. Material Clamp:   Cast steel hot dip galvanised
Bolts:   Galvanised Steel
4. Corrosion specification   Hot dip galvanised as per SABS 763
5. Minimum failing load kN 70
6. Operating ambient
temperature
°C -1 to 40
7. Relative Humidity % 85
8. Altitude above sea level m 1400
9. Applicable Standard   BS 3288, SABS 763
10. Previous type
test results/certificat e to be provided with bid
Tensile
tests, etc
Yes/No Yes
11. Drawing showing dimensions to be provided with bid
Yes/No

Yes
12. Quality assurance manuals/
certificate to be provided with bid
Yes/No Yes




232



13. Routine test results to be
provided on delivery.
Yes/No Yes


DIMENSIONS (see drawing no. ZAM-GEN-DM-08-E-12093 below)

Clamp size A (mm) B(mm) C D (mm) E (mm) F (mm)
100mm2 190 140 U-bolt
M10
22 16 50


Drawing No: ZAM-GEN-DM-08-E-12093

Notes

(iv)      The minimum failing load shall be indelibly marked on each Pistol clamp. (v)       The system of dimensioning shall be as per BS 3288
(vi)       The supplier should  provide a test certificate for compliance to the minimum failing load





Tower Hooks





S/N DETAIL UNITS DATA
1. Type   See Fig 1
2. Minimum failing load kN 70
3. Material   Forged Steel hot dip galvanised
4. Tolerances   As per BS 3288
5. Ball Size   As per IEC 60120
6. Previous Type Test to be provided
with bid
Yes/No Yes
7. Drawing showing Dimensions to be
provided with bid
Yes/No Yes
8. Quality Assurance certificate to be
provided with bid
Yes/No Yes
9. Routine test results to be provided
on delivery
Yes/No Yes
10. Applicable standard   BS 3288








Pig tail Hooks







S/N DETAIL UNITS DATA
1. Minimum failing load kN 70
2. Material   Forged steel hot dip galvanised
3. Tolerances   As per BS 3288
4. Altitude m 1400
5. Operating ambient temperature oC -1 to 40
6. Relative Humidity % 85
7. Ball End and Shank   16mm as per IEC 60120
8. Dimensions:
As per Drawing
E8456/40b

A
mm 200
B mm 20
C mm 32
D mm 30
9. Previous type test certificate/results to be provided with bid Yes/No Yes
10. Drawings showing the
dimensions of the adaptor to be provided with bid
Yes/No Yes
11. Routine test certificate to be
provided on delivery of adaptors
Yes/No Yes
12. Quality Assurance Certificate to
be provided with bid
Yes/No Yes
13. Applicable standard   BS 3288
`
