Polymer Fuse Cutout, Drop out Fuses 36kv 200A
You are here: Home » Products » High-voltage distribution fuse links » Polymer Fuse Cutout, Drop out Fuses 36kv 200A
Share to:

Polymer Fuse Cutout, Drop out Fuses 36kv 200A

Quantity:
  • PRW-36/200
  • Distribution
  • Circle
  • Fuse Link
  • OEIpower
  • IEC282-2 IEEEc37-41
  • 85351000
  • High
  • High Voltage
  • T K
  • IEC IEEE
  • Cartons Pallets Wooden Case
  • China Nanyang

Product Description

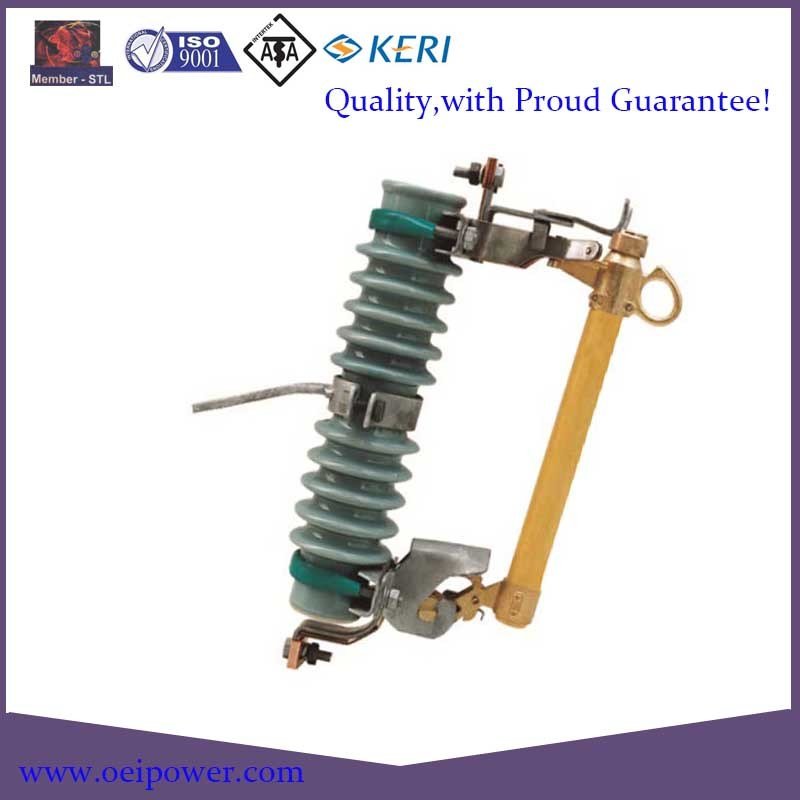

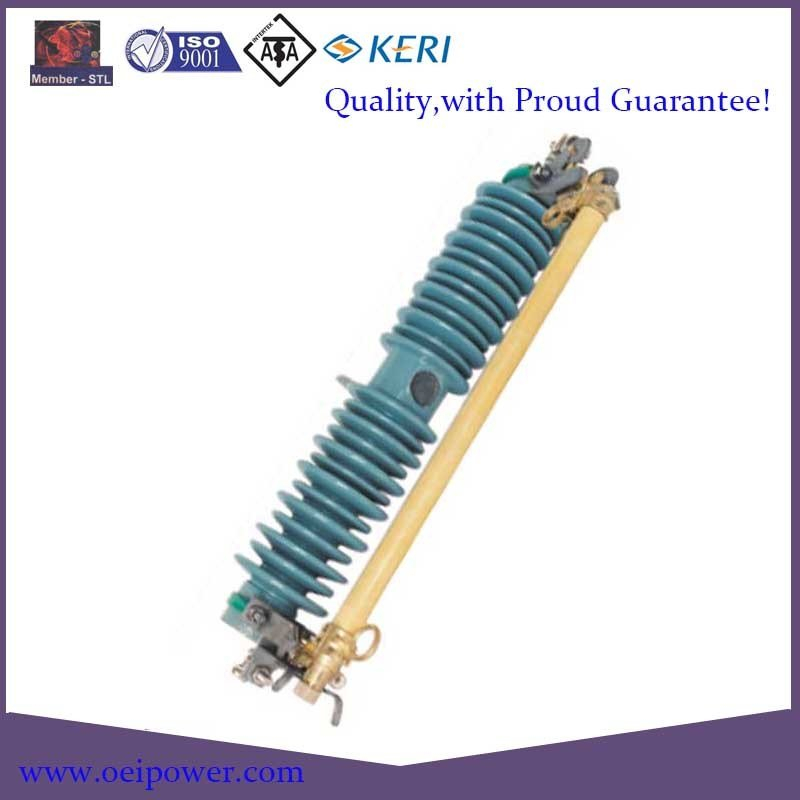

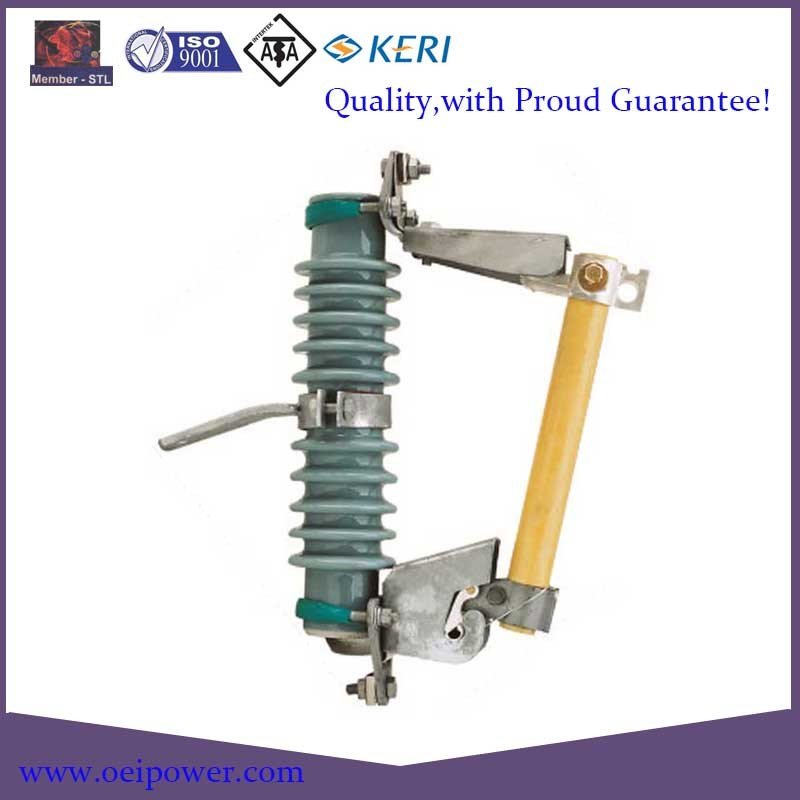

 The Fuse Cutout type OEI was developed to operate in overhead distribution systems rated at 11
kV to 38 kV grounded systems with 100 or 200 A nominal currents.
Especially designed to protect transformers, capacitors, cables or lines.
It is robust construction, made of rigorously tested material, will interrupt all faults under the
most severe conditions, maintaining mechanical and electric characteristics.
The inserts, hardware and structural bolts and nuts are made from heavy galvanized steel.
The Fuse Cutout type OEI can be applied on all three-phase system rated at or below the maximum
operational rating of the cutout.

Performance Characteristic
Applied standard IEC60282-2
Catalog number
Nominal system voltage kV 11
Rated Frequency Hz 50
Rated m aximum(design) voltage 12
Rated Continuous current A-RMS 100
Rated Interrupting current asymmetrical/symmetrical A-RMS 12000/8000
BIL 1.2x50 µs kV-peak 125
Minimum critical impulse flashover voltage(CFO)KV peak 140
Dry withstand voltage kV-RMS 42
Wet withstand voltage kV-RMS 36
Creepage distance to group Min.mm 372
Minimum creepage factor of insulator (Creepage Distance/arcing distance) N/A
