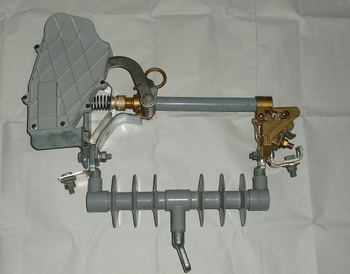

Polymeric Expulsion Fuses 36kv 100A

Quantity:
Inquire Add to Basket

  • High-voltage
  • Outdoor High-voltage
  • Grounding
  • Three Pole
  • Three
  • Ist
  • IEC IEEE
  • OEI Power
  • IEC IEEE
  • 8535309000
  • Three-column Disconnector
  • Manual
  • Horizontal Rotary Type
  • Single Ground
  • Turn the Horizontal
  • Manual
  • Oei Power
  • Wooden Case
  • China Nanyang

Product Description

TECHNICAL SPECIFICATIONS

Polymeric Expulsion Fuses 36kv 100A
Single Pole Switch Isolator, 22kV, 800/630A

1.0  General

The single pole switch isolator are used for isolating feeders and lines.

2.0  Service Conditions

a.    Ambient Temperature    :       5°C - 50°C
b.    Relative Humidity           :       95% at 45°C (Tropicalised)
c.    Environmental condition: Tropical climate with polluted atmosphere

3.0  System Parameters

 The switch shall be used on a network having the following characteristics:-
a.    Nominal voltage            : 22 kV
b.    Maximum voltage         :    24 kV
c.    Earthing Arrangement  :    Effectively earthed
d.    Frequency                       :    50 Hz

4.0  Standards
Polymeric Expulsion Fuses 36kv 100A

The item  conform to IEC 60129 or IEC62271-102 Ed.1.0 (2001)-Alternating current disconnectors & earthing switches or any other equivalent international standards.
It will be the responsibility of our to prove equivalency of his standard with one of these 2 standards mentioned above.


5.0  Technical requirements

a.    Rated voltage                          : 24kV
b.    Rated continuous current     :  630A
c.    Impulse Voltage Level (BIL)  : 150kV
d.    Rated Short time withstand current : 25kA/1 sec
e.    Rated peak withstand current  : 62kA
f.     Creepage Distance                      : 600mm
Polymeric Expulsion Fuses 36kv 100A

6.0  Basic Features

      The isolating switch  have the following characteristics;
         -  Single pole type suitable for outdoor use
         -  Double insulator construction
         -  Fitted with appropriate latching device to prevent accidental opening due to faults, line vibration, wind or other environmental influences
        - Operated by portable insulated hook stick
       -      Suitable for underslung or vertical mounting
       -   Fitted with Tin plated palms suitable for Copper and Aluminium compression     lugs
      -  The palms are suitable to accommodate conductor AAAC 150mm2 to BSEN50183: 2000 or armoured cable XLPE insulated 300mm2 Copper or 240mm2 Aluminium to IEC 502
- Incoming and outgoing conductor/cable are connected on fixed parts and not on rocking parts

Information to be furnished with the offer

The following are furnished with the offer:
a)    Type Test Reports conforming to the relevant IEC Standards
b)    Catalogues, Technical literature and dimensional drawings of the item offered
c)    Detailed list of components
d)   Duly filled Schedule of guaranteed particulars (Annexure A).
e)    ISO 9001:2000 Certificate including the requirements as defined by clause 7 of the ISO 9001:2000 Standard.
f)     A list of the supplier's orders for the last five years.




GUARANTEED PARTICULARS


Single pole switch isolator, 22kV , 800/630A

POV2568


Serial No. Description
1. Manufacturer's Reference name/code    OEIpower
2. Drawing No.    IS-24
3. Country of Origin
4. Standard specifications to which the switch conform   IEC62271-102
5. Rated Voltage kV 24
6. Rated frequency Hz 50
7. Rated continuous current A 630
8. Rated short time current
duration                                   		 kA

sec		 25kA/1 sec
9. Impulse voltage withstand
1.2/50µ S
kV		 150
10. Total creepage distance                      mm 600
