Expulsion Fuse-Cut out 10kv

Quantity:
  • PRW-10KV
  • Distribution
  • Circle
  • Fuse Link
  • OEIpower
  • IEC IEEE
  • 85351000
  • High
  • High Voltage
  • T K
  • IEC IEEE
  • Cartons Pallets Wooden Case
  • China Nanyang

Product Description

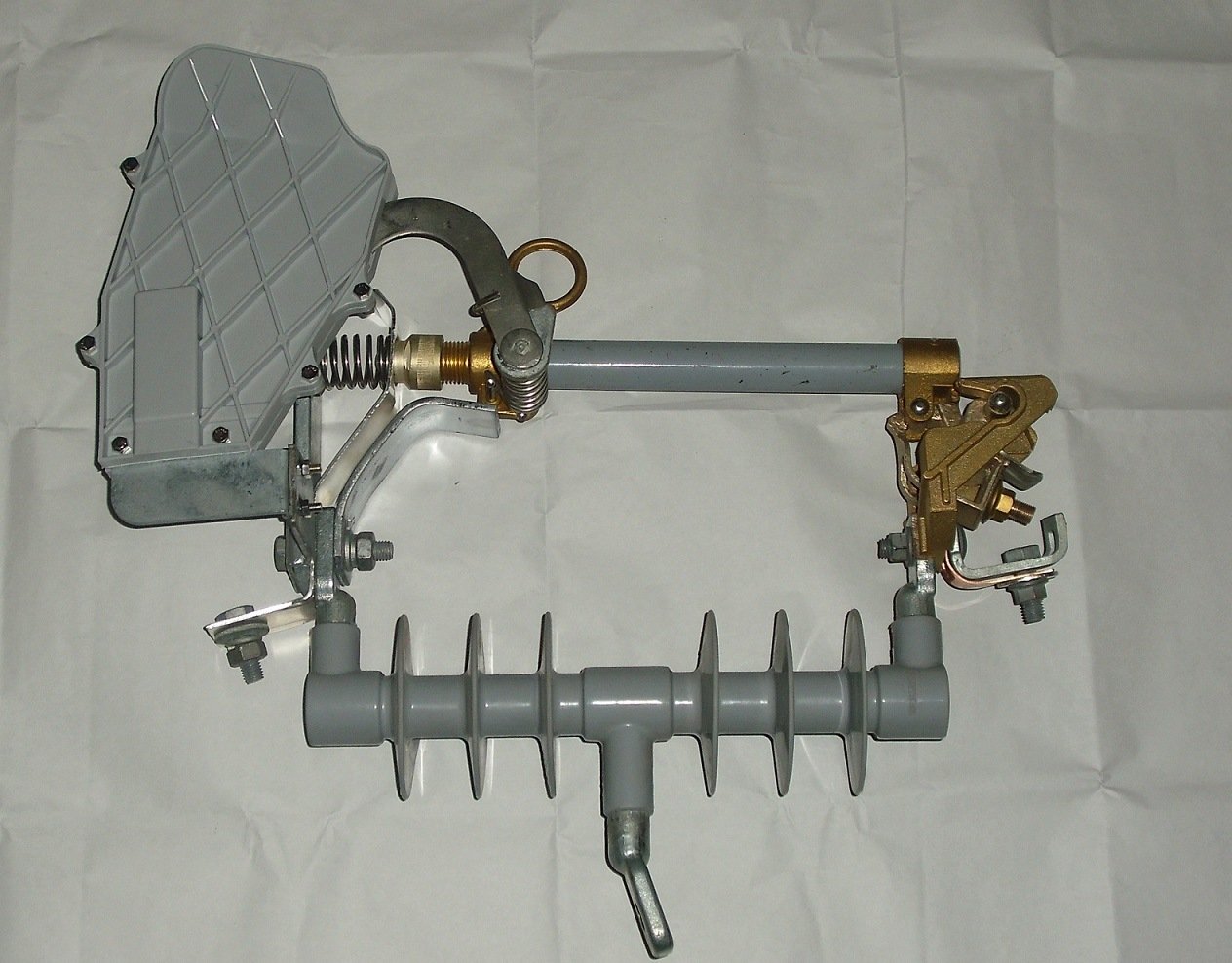

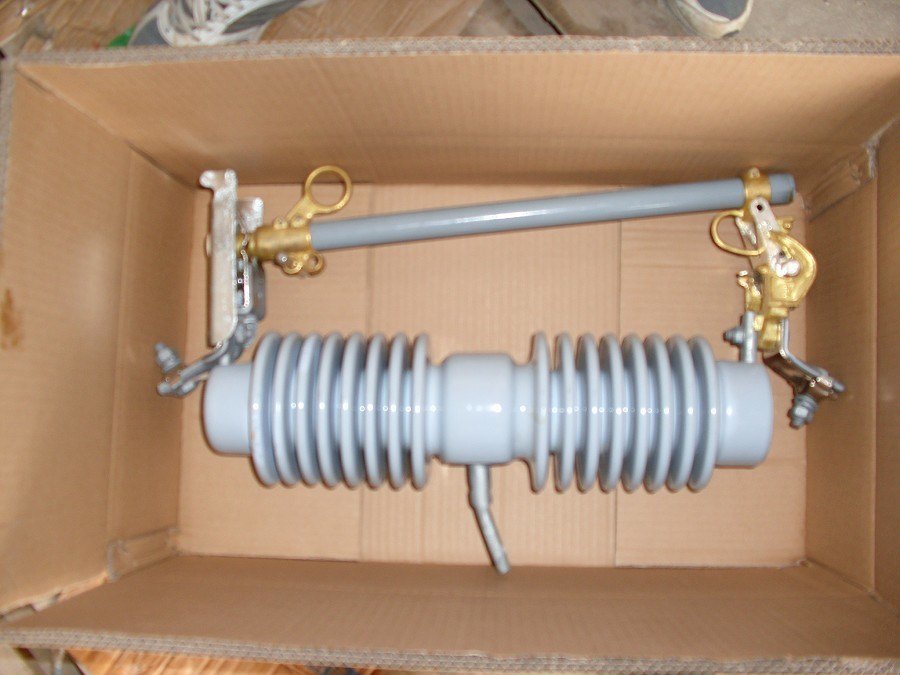

TYPE "OEI" "PRW" STANDARD CUTOUT DISTRIBUTION TECHNICAL SPECIFICATION
The Fuse Cutout type DHE was developed to operate in overhead distribution systems rated at 12-15 kV and 15-27,kV or 27-38 kV grounded systems with 100 or 200 A nominal currents.
Especially designed to protect transformers, capacitors, cables or lines.
It is robust construction, made of rigorously tested material, will interrupt all faults under the
most severe conditions, maintaining mechanical and electric characteristics.
The inserts, hardware and structural bolts and nuts are made from heavy galvanized steel.
The Fuse Cutout type OEI PRW can be applied on all three-phase system rated at or below the maximum operational rating of the cutout. In highly polluted environments or environments with high levels of salinity, a cutout may be used with a higher nominal rating than
that of the system where it is being installed, where the insulator will have a greater leakage distance to ground, allowing for
increased safety against discharge. For an even better protection against abrasions, the hardware may be supplied in stainless
steel. The fuse cutout type MZ has attachment hooks in aluminum.
The Fuseholder has a stainless steel flipper, which associated with a spring doesn't allow the fuse link to be subject to traction
forces of over 3 Kgf, especially during closing. This me chanism also allows for high speed fuse link separation. The fuse cutout
type OEI PRW allows for the insertion of the fuse tube in a precise man ner and always in perfect alignment, due to the large distance
between the grunion pocket. Lower contact, silver-to-silver, provide du el current path, independent of hinge pivot. Stainless-steel
back-up springs prevent arcing when tube rises in hinge during recoil. The fuse cutout type OEI PRW may be transformed into a DI
CONNECT up to 300 A, by simply changing the fuse tube for an electrolytic copper blade.
The DHE Fuse Cutouts conform to ANSI and IEC standards, with independent tests performed At:
CPRI Always use quality fuse links. Only they can assure excellent performance.


Fuse assembly with rewirable fuse link:
rating available (type K or T) 1,2,3,5,10,15,20,25,30,
40,50,60,75 * 100A
? A spring loaded flipper and locking mechanism at the
lower end of the fuse carrier ensures consistent
tension on the fuse link and prevents element damage
during 'close in'
? Galvanised steel phase channel bases
? Connector terminals suitable for conductor sizes
ranging from 3mm to 12mm diameter
? Hook Stick operation

Performance Characteristic
Applied standard IEEE C37.42-2009
Catalog number
Nominal system voltage kV 33
Rated Frequency Hz 50
Rated m aximum(design) voltage 38
Rated Continuous current A-RMS 100
Rated Interrupting current asymmetrical/symmetrical A-RMS 8000/5000
BIL 1.2x50 µs kV-peak 150
Minimum critical impulse flashover voltage(CFO)KV peak 165
Dry withstand voltage kV-RMS 70
Wet withstand voltage kV-RMS 60
Creepage distance to group Min.mm 650
Minimum creepage factor of insulator (Creepage Distance/arcing distance) 2.3
