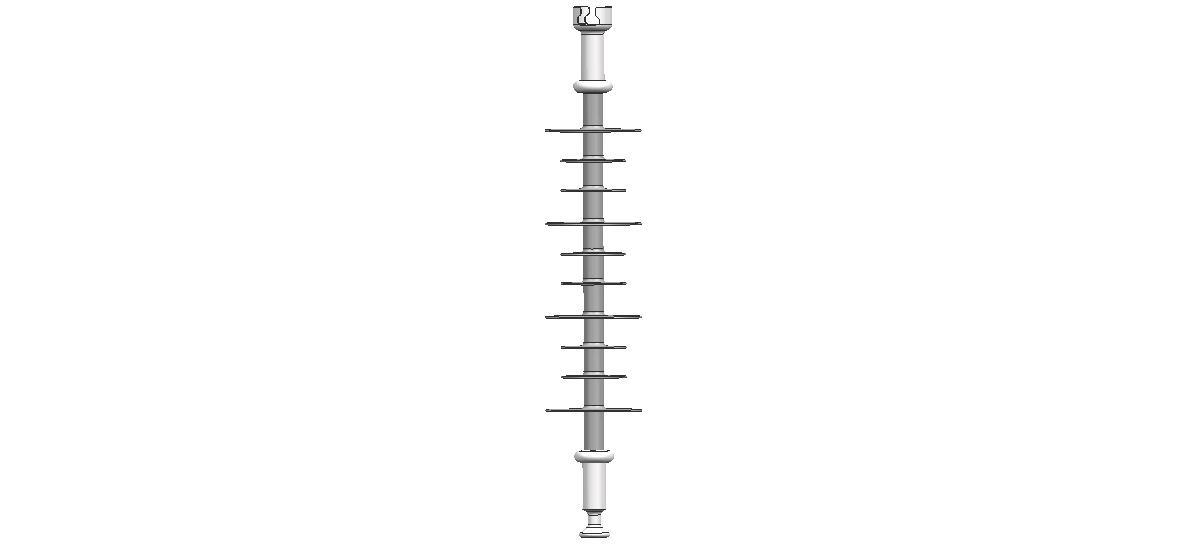

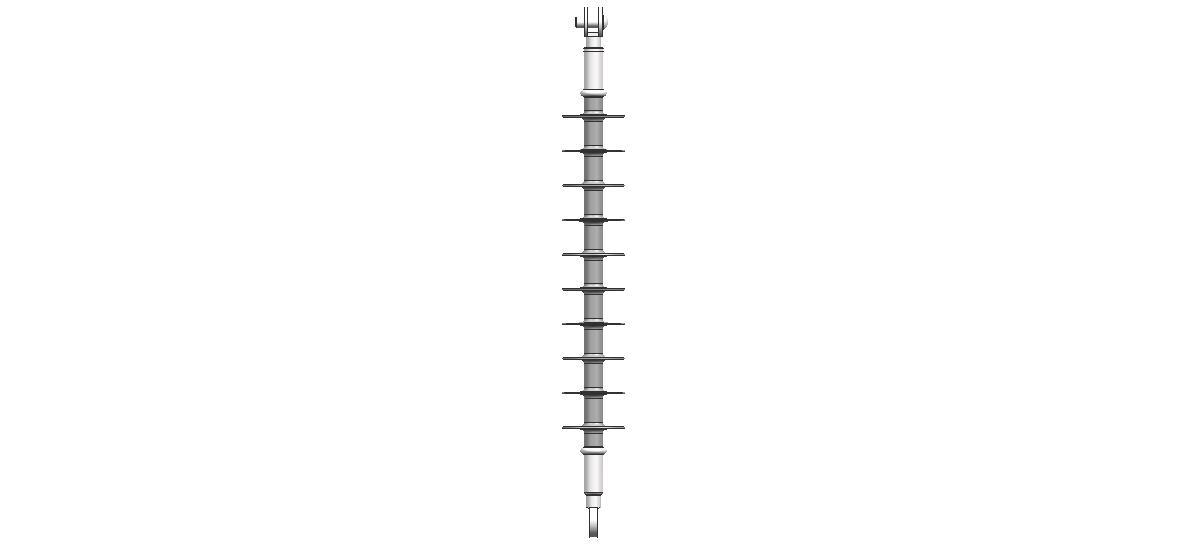

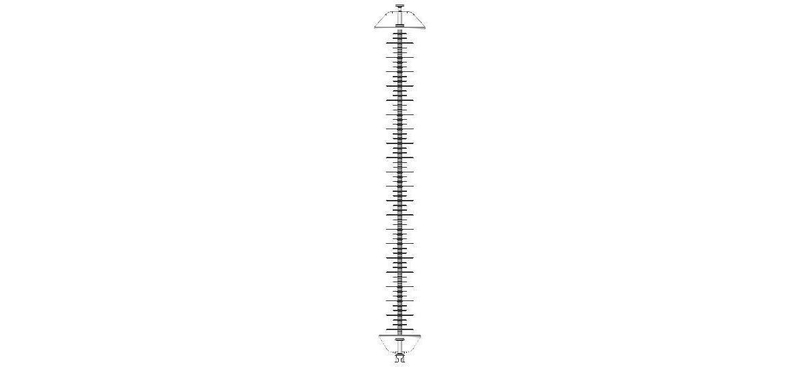

Polymer Insulator Composite Insulator Composite

Quantity:
  • pin type post type Strain type Suspension
  • Composite Polymer
  • A Type Insulator
  • Trough Type
  • ISO9001, IEC IEEE
  • Oei Power
  • IEC61109, BS 3288-2
  • 854690000
  • High-voltage, Low-voltage, High-temperature
  • Suspension Insulator
  • High Voltage Power Transmission
  • 160KN
  • Grey
  • OEIpower
  • China Nanyang

Product Description

Cpmposites insulator,All nsulators are manufactured in accordance
to IEC 61952. Quality processes are implemented
as per ISO 9001:2000.
S/N DETAILS UNITS DATA
1. Type
100mm2   Compression type mid span joint
complete with a tubular aluminium outer extrusion ,steel inner sleeve and two filler plugs
2. Material for outer
extrusion

Aluminium -99.5% purity
3. Material for inner sleeve
HDG steel
4. Type of inner sleeve
Tubular, suitable for compression into
hexagonal shape
5. Suitable for the following
ACSR Conductor Size
mm2 100
6. Resistivity
Less than 75% of  the resistivity of an
equivalent length of conductor.
7. Minimum failing load kN 35
8. Operating ambient
temperature
°C -1 to 40
9. Relative Humidity % 85
10. Altitude above sea level m 1400
