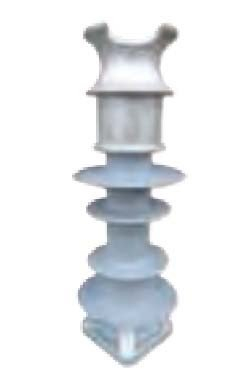

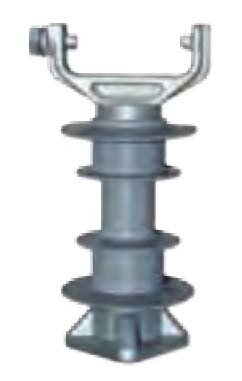

15kv Polymer Line Post Insulators Insulators

Quantity:
Inquire Add to Basket

  • High-voltage, Low-voltage, High-temperature
  • Suspension Insulator
  • High Voltage Power Transmission
  • 160KN
  • Grey
  • OEIpower
  • IEC IEEE
  • 854690000
  • Composite Polymer
  • A Type Insulator
  • Trough Type
  • ISO9001, IEC IEEE
  • Oei Power
  • Cartons Pallets Wooden Case
  • China Nanyang

Product Description

The Composite Insulators comply with the latest editions of and amendments to, the standards/specification listed below:

CSA                                   CANADIAN STANDARDS ASSOCIATION

G164-4                        -       Hot dip galvanizing of Irregular Shaped Articles

CAN/CSA                  -       Quality Assurance Program Categories 2299.3

ANSI                           -      AMERICAN NATIONAL STANDARDS INSTITUTE

C29.1                           -      American Standard Test Method For Electrical Power Insulators

C29.7                           -      American Standard For Wet-processed Porcelain Insulators (High Voltage Line Post Type) Electrical Power Insulators

987-1985                     -       IEEE Guide For Application of Composite Insulators

D750                            -      Recommended Practice for Operating Light and Weather Exposure Apparatus (Carbon Arc Type) For Artificial Weather Testing Of Rubber Compounds.

D1499                          -      Recommended Practice For Exposure of Plastics.

D2240                          -      Rubber Properties, Durometer Hardness

D2565                          -      Recommended Practice For Operating Xenon-Arc Light And Water Exposure Apparatus Plastics.
The weathershed of the Post Insulators shall be manufactured from either Hydrated Alumina Ethylene Propylene Copolymer (EPM) as the primary constituent or Silicone Elastomers. The weathershead shall be injection moulded and brought to final cure state in one continuous process to prevent internal undercure or surface overcure. Additionally, the weathershead shall provide hydrophobic surface, even after exposure to tropical marine environment, ultra violent rays and moisture.
Core

The rod or the core is manufactured from Fibreglass, having 70-75 by weight of auxiliary aligned glass fibre bonded by an organic resin. The rod is either be cast or pultruded.

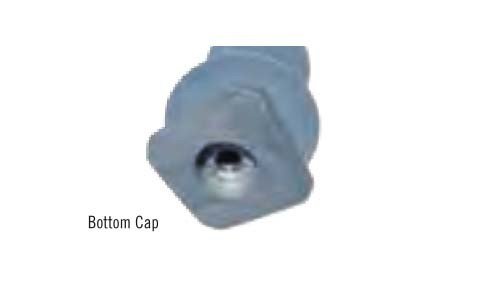

The end fittings are have the following properties:

i.          are compressed onto the Fibreglass rod member
ii.         are  not move relative to the central Fibreglass rod at applied loads equal to two times the rated Routine Test Load or maximum designed cantilever loads
iii.        are attracted to the rod after completion of all external heat processes used to cure or bond component parts.

The insulator are  provided load limiting bases that will deform under longitudinal loading of more than 100% of the rated design cantilever load.
Performance Characteristics

The Polymeric Insulators are meet the under listed performance characteristics.


             ITEM
                11kV
                33KV

Dry Flashover Withstand
                90kV
                180kV

Wet flashover withstand
                70kV
                165kV

Positive Impulse Critical flashover
               145kV
                300kV

Maximum Radio Interference Voltage
Below 1micro volt
   Below 1 micro volt

Design Tension Strength
                100kN
                 100kN

Residual Strength after Power Arc
                  80kN
                   80kN

Mechanical Proof Test Load
                 45kN
                   45kN

Maximum Sustained Load
                 34kN
                   34kN

Design Torque Rating
                83 Nm
                   83 Nm


The insulator are suitable for accepting both aluminium and copper conductors having cross-sectional areas ranging from 35mm2 to 265mm2. The insulators are designed for mounting on the angle and channel crossarms specified in Specification E14

All exposed ferrous part shall be treated against corrosion. Treatment by hot dip galvanizing is preferable.
